New HEAD VISOR VMA V Acoustic Camera and Software

27. 十一月 2023

Acoustic cameras can determine the position of sound sources in sound fields with a technology called beamforming. The new HEAD VISOR VMA V Acoustic Camera and HEAD VISOR 6 software constitute a unique combination of features, making it a preferred choice for professional users.

More Information

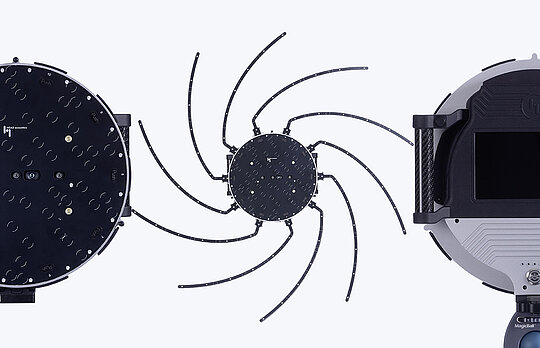

The HEAD VISOR VMA V Acoustic Camera

The lightweight and modular new HEAD VISOR VMA V offers extremely high levels of convenience and quality results, as all relevant settings can be made on the device, which can still easily be held in the hands over a longer period without fatigue. Of course, it can also be used with a standard camera stand.

HEAD VISOR VMA V is intuitive and efficient to operate, featuring a 7” multi-touch display and four control buttons that enable instant and highly precise results. All relevant functionalities of the HEAD VISOR Software are available on the handheld unit in real-time. The 30-cm-body integrates a depth camera for distance measurement and 60 microphones for close-up applications, for example, in a car interior. It is easily extendable with ten spiral arms, adding another 60 microphones and creating an array with a diameter of 100 cm. With this array, HEAD VISOR VMA V achieves a higher resolution and makes sounds visible down to a frequency of typically 250 Hz. HEAD VISOR VMA V allows users to visualize sounds at a wide range of distances, starting from only 30 cm.

The HEAD VISOR 6 Software

The HEAD VISOR 6 Software delivers the perfect user interface for beamforming and acoustic camera applications. It is a powerful and easy-to-use tool that combines functions such as recording, playback, analysis, and reporting in one package. It also features unique artificial intelligence algorithms (like neural deconvolution) to increase dynamics and spatial resolution. Thanks to the sophisticated data processing, the system can keep the raw data, so users can make changes even after the measurement.

Applications

Applications range from troubleshooting through analyzing and optimizing sounds to leak detection and visualizing acoustic weak points. It can be applied on test benches, in vehicles, in wind tunnels, or for environmental measurements.

Licensing

Users can select between four license models, ranging from the HEAD VISOR Snap license, which lets users take a snapshot of the object under investigation and export it instantly, to a full license that grants access to the whole range of features our HEAD VISOR system offers.

The HEAD VISOR VMA V and HEAD VISOR Software highlights

• Customizable, scalable system for diverse applications
• Convenient licensing options for any need, scalable software via tool packets
• Scalable diameter from 30cm with 60 microphones (without arms) to 100cm with 120 microphones (with plugged arms)
• MultipleEye technology: Continuous, synchronous video images in real-time and the ability to determine distances to all points in the image with exceptional precision
• Extremely high location accuracy for the most challenging professional tasks, from car interiors to wind turbines
• Lightweight, easy manageable hardware with integrated battery
• Results can directly be shown and analyzed on the integrated display
• Increase of the spatial resolution with unique artificial intelligence algorithm (for example, neural deconvolution)

Please don’t hesitate to contact us for more information: sales@head-acoustics.com
